Simpson CBH2.37X9.75B-KT Concealed Glulam Beam Hanger - Electro-Galvanized, Made to Order Non-Returnable

The CBH2.37X9.75B-KT is a concealed beam hanger kit from Simpson Strong-Tie, engineered for heavy-duty, hidden wood-to-wood connections in mass timber applications. Designed for a clean, modern finish with no visible hardware, it’s perfect for projects that showcase exposed timber framing with structural strength and seamless aesthetics.

Kit Includes:

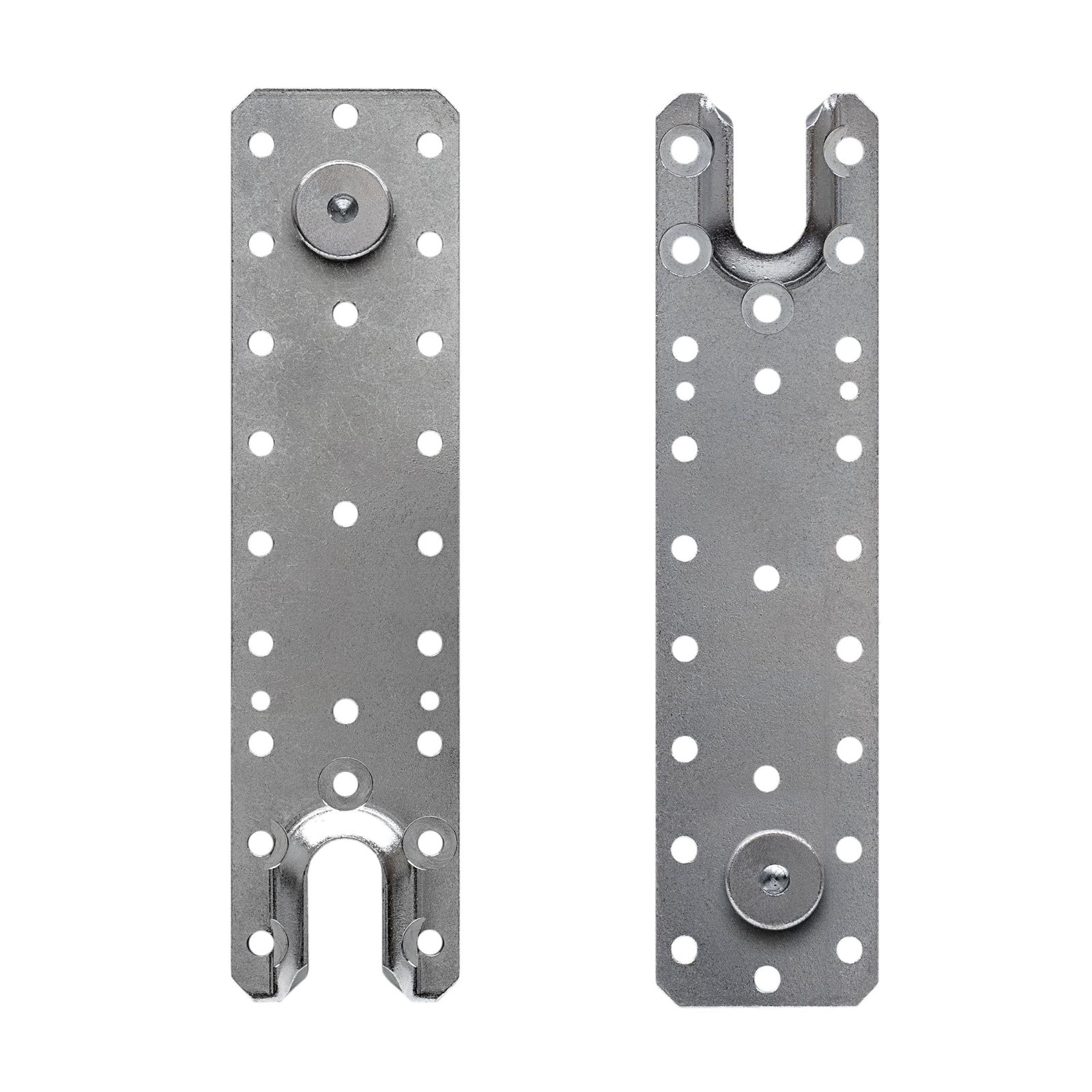

• (2) CBH2.37X9.75B Concealed Beam Hanger Backplates
• (23) SDS25300 1/4" x 3" Strong-Tie SDS25300 Heavy-Duty Connector Screws
• (23) SDS25600 1/4" x 6" Strong-Tie SDS25600 Heavy-Duty Connector Screws

Key Features:

• Hidden Connection: Maintains clean, uninterrupted timber surfaces
• High Load Performance: Code-listed under ICC-ES ESR-2552
• Precision Alignment: Allows for ±1/32" beam length tolerance
• Heavy-Duty Steel: Manufactured from 3-gauge galvanized steel for structural strength

Applications:

• Concealed beam-to-column or beam-to-beam connections
• Mass timber structures and architectural wood framing
• Projects requiring hidden, high-load timber joints

Installation Overview:

1. Prepare Members: Ensure beams and columns are clean, square-cut, and dry.
2. Routing (if needed): Recess areas for the hanger plates per project specifications.
3. Secure Plates: Attach each plate to the timber using the included SDS screws.
4. Join Components: Align and interlock the members so the stud fits securely into the slotted plate.
5. Inspect Fit: Confirm full seating and alignment before moving forward.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
